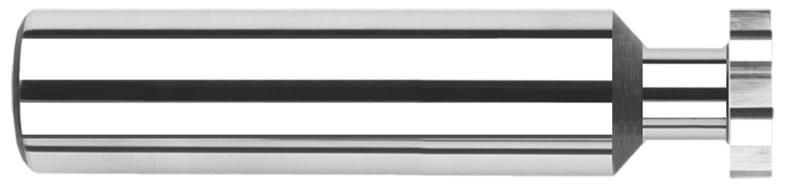

0.3125 in. (5/16) Cutter Diameter x 0.1250 in. (1/8) Width x 0.1870 in. (3/16) Neck Length 6 Flute Carbide Square Deep Keyseat Cutter

  • Item Code: 973460
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Length 0.1870" (3/16)
Neck Diameter 0.1090" (7/64)
Reach Multiple (0.5x)
Material Solid Carbide
Cutter Width 0.1250" (1/8)
Type II
Coating/Finish None
Radial Depth of Cut 0.0910"
Decimal Diameter 0.3125"
Fractional Diameter 5/16"
Number of Flutes 6
Shank Diameter 0.3125" (5/16)
Brand Harvey Tool
Overall Length 2.5000" (2-1/2)
