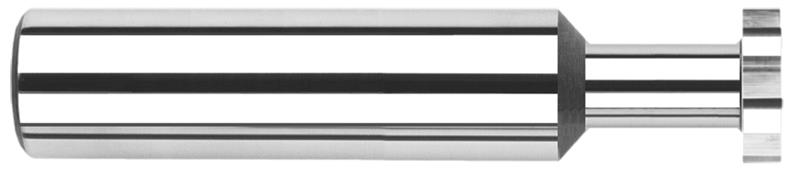

0.5000 in. (1/2) Cutter Diameter x 0.0310 in. (1/32) Width x 0.5000 in. (1/2) Neck Length 8 Flute Carbide Square Deep Keyseat Cutter

  • Item Code: 975710
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coolant Through N
Radial Depth of Cut 0.1620"
Reach Multiple (1x)
Shank Diameter 0.5000" (1/2)
Brand Harvey Tool
Coating/Finish None
Material Solid Carbide
Neck Diameter 0.1560" (5/32)
Decimal Diameter 0.5000"
Neck Length 0.5000" (1/2)
Type II
Overall Length 3.0000" (3)
Cutter Width 0.0310" (1/32)
Fractional Diameter 1/2"
Number of Flutes 8
