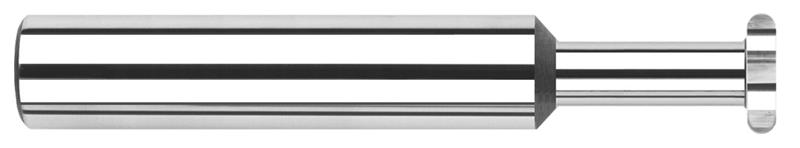

0.0930 in. (3/32) Cutter Diameter x 0.0156 in. (1/64) Radius x 0.1410 in. Neck Length 4 Flute Carbide Full Radius Keyseat Cutter

  • Item Code: 976915
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 6 flutes
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Overall Length 1.5000" (1-1/2)
Reach Multiple (1.5x)
Brand Harvey Tool
Radius Fractional 1/64"
Coating/Finish None
Decimal Diameter 0.0930"
Radius Decimal 0.0156"
Type I
Fractional Diameter 3/32"
Neck Length 0.1410"
Radial Depth of Cut 0.0200"
Cutter Width 0.0312" (1/32)
Material Solid Carbide
Neck Diameter 0.0470" (3/64)
Number of Flutes 4
Shank Diameter 0.1250" (1/8)
