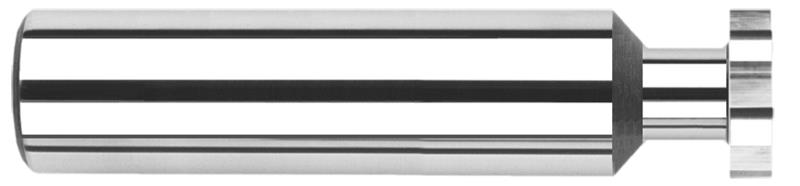

0.1875 in. (3/16) Cutter Diameter x 0.0780 in. (5/64) Width x 0.0930 in. (3/32) Neck Length 6 Flute Carbide Square Deep Keyseat Cutter

  • Item Code: 980078
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Reach Multiple (0.5x)
Brand Harvey Tool
Neck Length 0.0930" (3/32)
Radial Depth of Cut 0.0520"
Neck Diameter 0.0620" (1/16)
Coating/Finish None
Overall Length 2.0000" (2)
Decimal Diameter 0.1875"
Number of Flutes 6
Shank Diameter 0.1875" (3/16)
Type II
Fractional Diameter 3/16"
Cutter Width 0.0780" (5/64)
Material Solid Carbide
