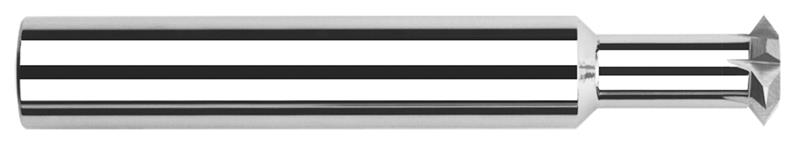

0.1250 in. (1/8) Cutter Diameter x 0.0360 in. Width x 0.8750 in. (7/8) Neck Length 4 Flute Carbide Pointed Double Angle Shank Cutter

  • Item Code: 981001
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
    • Reduced neck for long reach machining
    • Tip of included angle ground to a point
    • 60 degree angle can also be used for thread milling
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating None
Included Angle 60
Overall Length Fractional 2"
Angle per Side 30
Brand Harvey Tool
Material Solid Carbide
Neck Length 0.8750" (7/8)
Overall Length Decimal 2.0000"
Fractional Cutting Diameter 1/8"
Neck Diameter 0.0620" (1/16)
Number of Flutes 4
Shank Diameter 0.1250" (1/8)
Type I
Cutter Width 0.0360"
Decimal Cutting Diameter 0.1250"
