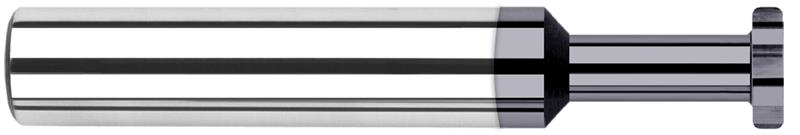

0.2500 in. (1/4) Cutter Diameter x 0.0050 in. Radius x 0.0930 in. (3/32) Width x 0.3750 in. (3/8) Neck Length 6 Flute AlTiN Coated Carbide Corner Radius Keyseat Cutter

  • Item Code: 981193-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Diameter 0.1250" (1/8)
Number of Flutes 6
Overall Length 2.5000" (2-1/2)
Radial Depth of Cut 0.0530"
Brand Harvey Tool
Cutter Width 0.0930" (3/32)
Material Solid Carbide
Shank Diameter 0.2500" (1/4)
Top Corner Radius 0.005
Decimal Diameter 0.2500"
Fractional Diameter 1/4"
Radius Decimal 0.0050"
Neck Length 0.3750" (3/8)
Reach Multiple (1.5x)
Coating/Finish AlTiN
Type I
