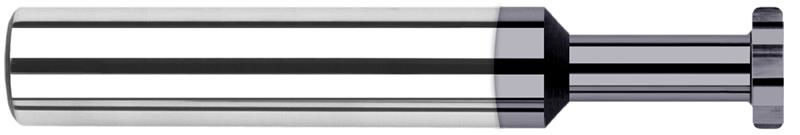

0.3750 in. (3/8) Cutter Diameter x 0.0100 in. Radius x 0.0780 in. (5/64) Width x 0.5620 in. (9/16) Neck Length 8 Flute AlTiN Coated Carbide Corner Radius Keyseat Cutter

  • Item Code: 981640-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 8
Neck Diameter 0.1870" (3/16)
Decimal Diameter 0.3750"
Neck Length 0.5620" (9/16)
Top Corner Radius 0.01
Radial Depth of Cut 0.0840"
Radius Decimal 0.0100"
Shank Diameter 0.3750" (3/8)
Brand Harvey Tool
Fractional Diameter 3/8"
Material Solid Carbide
Cutter Width 0.0780" (5/64)
Overall Length 2.5000" (2-1/2)
Reach Multiple (1.5x)
Coating/Finish AlTiN
Type I
