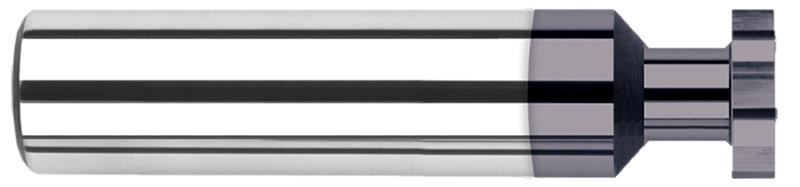

0.1250 in. (1/8) Cutter Diameter x 0.0250 in. Width x 0.0620 in. (1/16) Neck Length 6 Flute AlTiN Coated Carbide Square Deep Keyseat Cutter

  • Item Code: 982525-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 6
Overall Length 1.5000" (1-1/2)
Type II
Decimal Diameter 0.1250"
Material Solid Carbide
Neck Length 0.0620" (1/16)
Radial Depth of Cut 0.0320"
Reach Multiple (0.5x)
Cutter Width 0.0250"
Fractional Diameter 1/8"
Shank Diameter 0.1250" (1/8)
Brand Harvey Tool
Coating/Finish AlTiN
Neck Diameter 0.0400"
