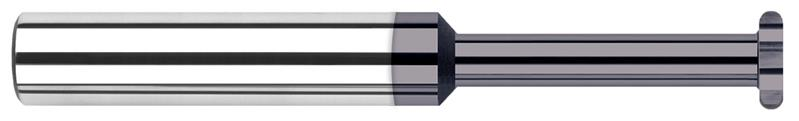

0.6250 in. (5/8) Cutter Diameter x 0.1250 in. (1/8) Radius x 2.0000 in. (2) Neck Length 6 Flute AlTiN Coated Carbide Full Radius Keyseat Cutter

  • Item Code: 983008-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 6 flutes
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radial Depth of Cut 0.1520"
Cutter Width 0.2500" (1/4)
Material Solid Carbide
Number of Flutes 6
Fractional Diameter 5/8"
Neck Length 2.0000" (2)
Brand Harvey Tool
Radius Fractional 1/8"
Overall Length 4.0000" (4)
Reach Multiple (3x)
Type I
Decimal Diameter 0.6250"
Coating/Finish AlTiN
Neck Diameter 0.3000"
Radius Decimal 0.1250"
Shank Diameter 0.6250" (5/8)
