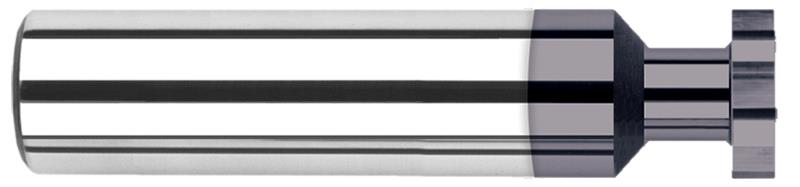

0.5000 in. (1/2) Cutter Diameter x 0.1250 in. (1/8) Width x 0.1560 in. (5/32) Neck Length 12 Flute AlTiN Coated Carbide Square Max Keyseat Cutter

  • Item Code: 985260-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Fractional Diameter 1/2"
Neck Length 0.1560" (5/32)
Decimal Diameter 0.5000"
Neck Diameter 0.1000"
Radial Depth of Cut 0.1920"
Cutter Width 0.1250" (1/8)
Number of Flutes 12
Coating/Finish AlTiN
Reach Multiple (0.3x)
Type III
Shank Diameter 0.5000" (1/2)
Material Solid Carbide
Brand Harvey Tool
Overall Length 3.0000" (3)
