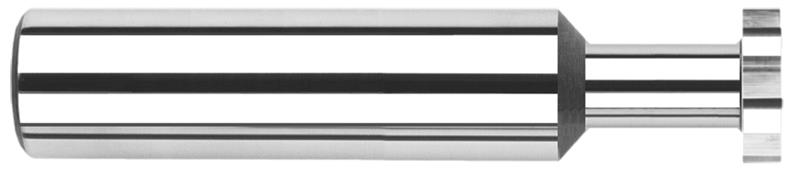

0.2500 in. (1/4) Cutter Diameter x 0.0150 in. (1/64) Width x 0.2500 in. (1/4) Neck Length 6 Flute Carbide Square Deep Keyseat Cutter

  • Item Code: 986115
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.0150" (1/64)
Radial Depth of Cut 0.0760"
Material Solid Carbide
Coating/Finish None
Decimal Diameter 0.2500"
Type II
Neck Diameter 0.0780" (5/64)
Reach Multiple (1x)
Fractional Diameter 1/4"
Number of Flutes 6
Shank Diameter 0.2500" (1/4)
Neck Length 0.2500" (1/4)
Brand Harvey Tool
Coolant Through N
Overall Length 2.5000" (2-1/2)
