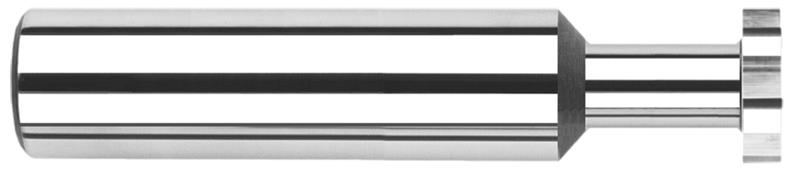

0.2500 in. (1/4) Cutter Diameter x 0.0310 in. (1/32) Width x 0.2500 in. (1/4) Neck Length 6 Flute Carbide Square Deep Keyseat Cutter

  • Item Code: 986131
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 6
Overall Length 2.5000" (2-1/2)
Type II
Coating/Finish None
Neck Diameter 0.0780" (5/64)
Fractional Diameter 1/4"
Radial Depth of Cut 0.0760"
Shank Diameter 0.2500" (1/4)
Brand Harvey Tool
Decimal Diameter 0.2500"
Reach Multiple (1x)
Material Solid Carbide
Neck Length 0.2500" (1/4)
Cutter Width 0.0310" (1/32)
