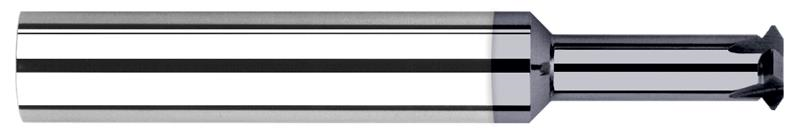

0.0540 in. Cutter Diameter x 0.1250 in. (1/8) Reach 3 Flute AlTiN Nano Coated Carbide Single Form #1 Thread Milling Cutter for Hardened Steels

  • Item Code: 986604-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for threading hardened steel 48-68Rc
    • Single thread form designed?to mill common pitch sizes
    • Tip of included angle ground to a flat for increased wear resistance
    • Large rigid core diameter and eccentric relief for improved strength
    • Mills left hand and right hand threads
    • Cuts internal and external 60 degree UN threads
    • h6 shank tolerance for high precision tool holders
    • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
    • Select carbide grade for improved edge retention
    • CNC ground in the USA

Tech Specs

Back To Top
Maximum Depth of Thread 0.1250" (1/8)
Tip Flat 0.0014"
Angle per Side 30
Material Solid Carbide
Coating/Finish AlTiN Nano
Included Angle 60
Number of Flutes 3
Brand Harvey Tool
Shank Diameter 0.1250" (1/8)
Cutter Diameter Decimal 0.0540"
Size 1
Length of Cut 0.0120"
Neck Diameter 0.0340"
Overall Length 1.5000" (1-1/2)
