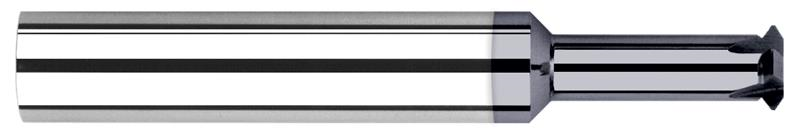

0.0930 in. (3/32) Cutter Diameter x 0.1870 in. (3/16) Reach 4 Flute AlTiN Nano Coated Carbide Single Form #5 Thread Milling Cutter for Hardened Steels

  • Item Code: 986615-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for threading hardened steel 48-68Rc
    • Single thread form designed?to mill common pitch sizes
    • Tip of included angle ground to a flat for increased wear resistance
    • Large rigid core diameter and eccentric relief for improved strength
    • Mills left hand and right hand threads
    • Cuts internal and external 60 degree UN threads
    • h6 shank tolerance for high precision tool holders
    • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
    • Select carbide grade for improved edge retention
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Diameter Decimal 0.0930"
Length of Cut 0.0190"
Tip Flat 0.0023"
Coating/Finish AlTiN Nano
Neck Diameter 0.0630" (1.6 mm)
Shank Diameter 0.1875" (3/16)
Size 5
Overall Length 2.0000" (2)
Brand Harvey Tool
Angle per Side 30
Included Angle 60
Material Solid Carbide
Maximum Depth of Thread 0.1870" (3/16)
Number of Flutes 4
Cutter Diameter Fractional 3/32"
