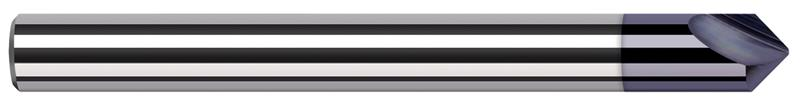

0.1250 in. (1/8) Shank Diameter x 0.0050 in. Radius x 60 Deg. Included 2 Flute AlTiN Coated Carbide Marking Cutter

  • Item Code: 987630-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Milling Legible Part Numbers in Difficult-to-Machine Materials
    • Radiused Tip Design for Improved Strength
    • 2 Flute Cutting Design Has Improved Strength Over Single Point Engravers
    • Produces Radius in Bottom of Groove
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Length of Cut 0.1033"
Coating AlTiN
Decimal Cutting Diameter 0.1250"
Included Angle 60
Angle per Side 30
Material Solid Carbide
Number of Flutes 2
Radius Decimal 0.0050"
Brand Harvey Tool
Fractional Cutting Diameter 1/8"
Overall Length 1.5000" (1-1/2)
Shank Diameter Decimal 0.1250"
Shank Diameter Fractional 1/8"
