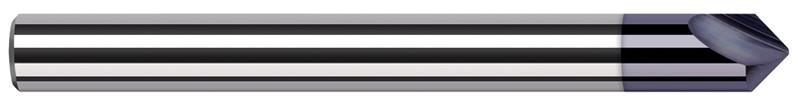

0.1250 in. (1/8) Shank Diameter x 0.0050 in. Radius x 90 Deg. Included 2 Flute AlTiN Coated Carbide Marking Cutter

  • Item Code: 987645-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Milling Legible Part Numbers in Difficult-to-Machine Materials
    • Radiused Tip Design for Improved Strength
    • 2 Flute Cutting Design Has Improved Strength Over Single Point Engravers
    • Produces Radius in Bottom of Groove
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Length of Cut 0.0604"
Radius Decimal 0.0050"
Shank Diameter Decimal 0.1250"
Brand Harvey Tool
Decimal Cutting Diameter 0.1250"
Angle per Side 45
Fractional Cutting Diameter 1/8"
Shank Diameter Fractional 1/8"
Included Angle 90
Overall Length 1.5000" (1-1/2)
Coating AlTiN
Material Solid Carbide
Number of Flutes 2
