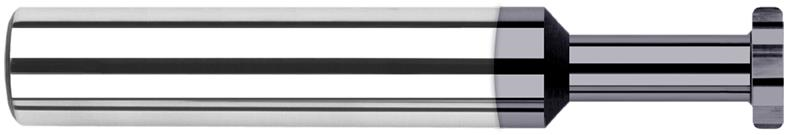

0.5000 in. (1/2) Cutter Diameter x 0.0100 in. Radius x 0.1870 in. (3/16) Width x 0.7500 in. (3/4) Neck Length 8 Flute AlTiN Coated Carbide Corner Radius Keyseat Cutter

  • Item Code: 987770-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radial Depth of Cut 0.1150"
Top Corner Radius 0.01
Neck Diameter 0.2500" (1/4)
Reach Multiple (1.5x)
Fractional Diameter 1/2"
Number of Flutes 8
Material Solid Carbide
Neck Length 0.7500" (3/4)
Decimal Diameter 0.5000"
Brand Harvey Tool
Coating/Finish AlTiN
Overall Length 3.0000" (3)
Cutter Width 0.1870" (3/16)
Radius Decimal 0.0100"
Shank Diameter 0.5000" (1/2)
Type I
