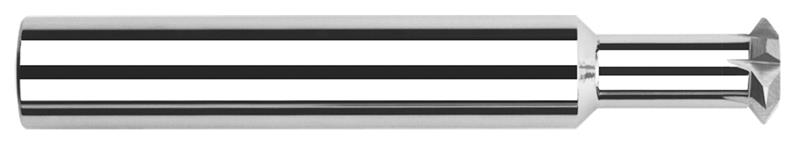

0.5000 in. (1/2) Cutter Diameter x 0.0150 in. (1/64) Radius x 0.2000 in. Width x 0.5000 in. (1/2) Neck Length 6 Flute Carbide Tip Radius Double Angle Shank Cutter

  • Item Code: 988632
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
    • Radius on tip for improved strength and wear resistance
    • Reduced neck for long reach machining
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Material Solid Carbide
Coating None
Fractional Cutting Diameter 1/2"
Included Angle 90
Neck Length 0.5000" (1/2)
Overall Length Fractional 3"
Decimal Cutting Diameter 0.5000"
Radius Fractional 1/64"
Angle per Side 45
Radius Decimal 0.0150"
Brand Harvey Tool
Cutter Width 0.2000"
Shank Diameter 0.5000" (1/2)
Neck Diameter 0.3120" (5/16)
Number of Flutes 6
Overall Length Decimal 3.0000"
