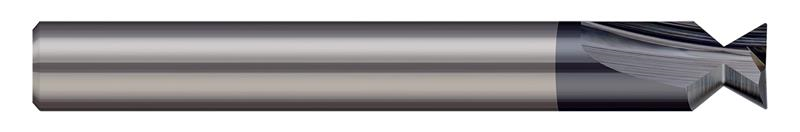

0.3750 in. (3/8) Cutter Diameter x 10 Deg. Included 3 Flute AlTiN Coated Carbide Pointed Dovetail Cutter

  • Item Code: 990124-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Offered with sharp corner .003", .005", or .010" Corner Radius
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish AlTiN
Overall Length 2.5000" (2-1/2)
Shank Diameter 0.3750" (3/8)
Angle per Side 5
Neck Diameter 0.2880"
Decimal Cutting Diameter 0.3750"
Fractional Cutting Diameter 3/8"
Number of Flutes 3
Brand Harvey Tool
Length of Cut 0.5000" (1/2)
Included Angle 10
Material Solid Carbide
