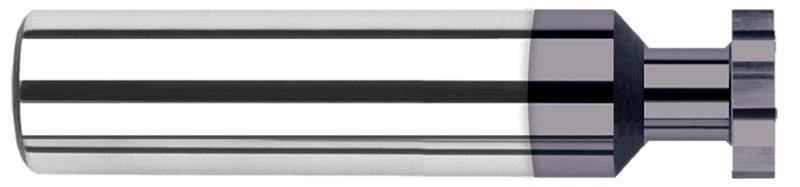

0.3750 in. (3/8) Cutter Diameter x 0.0930 in. (3/32) Width x 0.1090 in. (7/64) Neck Length 10 Flute AlTiN Coated Carbide Square Max Keyseat Cutter

  • Item Code: 991350-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 10
Cutter Width 0.0930" (3/32)
Decimal Diameter 0.3750"
Shank Diameter 0.3750" (3/8)
Type III
Coating/Finish AlTiN
Material Solid Carbide
Radial Depth of Cut 0.1420"
Reach Multiple (0.3x)
Brand Harvey Tool
Overall Length 2.5000" (2-1/2)
Fractional Diameter 3/8"
Neck Diameter 0.0750" (1.9 mm)
Neck Length 0.1090" (7/64)
