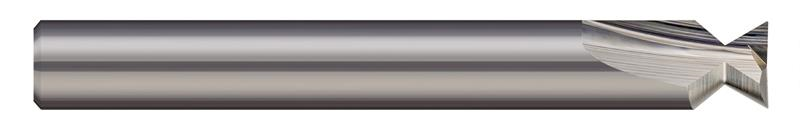

0.3750 in. (3/8) Cutter Diameter x 0.0100 in. Radius x 4 Deg. Included 3 Flute Carbide Pointed Dovetail Cutter

  • Item Code: 991424
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Offered with sharp corner .003", .005", or .010" Corner Radius
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish None
Material Solid Carbide
Fractional Cutting Diameter 3/8"
Number of Flutes 3
Brand Harvey Tool
Included Angle 4
Neck Diameter 0.3230"
Length of Cut 0.7500" (3/4)
Overall Length 2.5000" (2-1/2)
Radius Decimal 0.0100"
Shank Diameter 0.3750" (3/8)
Angle per Side 2
Decimal Cutting Diameter 0.3750"
