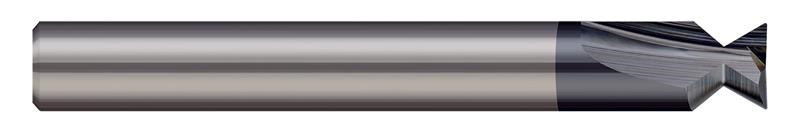

0.5000 in. (1/2) Cutter Diameter x 0.0100 in. Radius x 4 Deg. Included 3 Flute AlTiN Coated Carbide Pointed Dovetail Cutter

  • Item Code: 991432-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Offered with sharp corner .003", .005", or .010" Corner Radius
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Included Angle 4
Shank Diameter 0.5000" (1/2)
Angle per Side 2
Length of Cut 1.0000" (1)
Coating/Finish AlTiN
Material Solid Carbide
Neck Diameter 0.4310"
Number of Flutes 3
Radius Decimal 0.0100"
Decimal Cutting Diameter 0.5000"
Fractional Cutting Diameter 1/2"
Brand Harvey Tool
Overall Length 3.0000" (3)
