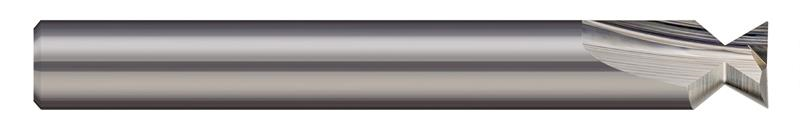

0.5000 in. (1/2) Cutter Diameter x 90 Deg. Included 3 Flute Carbide Pointed Dovetail Cutter

  • Item Code: 992032
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Offered with sharp corner .003", .005", or .010" Corner Radius
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Length of Cut 0.1410"
Material Solid Carbide
Decimal Cutting Diameter 0.5000"
Overall Length 3.0000" (3)
Shank Diameter 0.5000" (1/2)
Angle per Side 45
Included Angle 90
Fractional Cutting Diameter 1/2"
Neck Diameter 0.2180" (7/32)
Number of Flutes 3
Coating/Finish None
