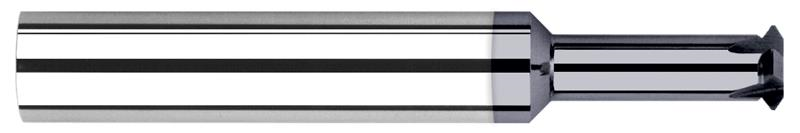

0.1600 in. Cutter Diameter x 0.6250 in. (5/8) Reach 5 Flute AlTiN Nano Coated Carbide Single Form #12 Thread Milling Cutter for Hardened Steels

  • Item Code: 993145-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for threading hardened steel 48-68Rc
    • Single thread form designed?to mill common pitch sizes
    • Tip of included angle ground to a flat for increased wear resistance
    • Large rigid core diameter and eccentric relief for improved strength
    • Mills left hand and right hand threads
    • Cuts internal and external 60 degree UN threads
    • h6 shank tolerance for high precision tool holders
    • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
    • Select carbide grade for improved edge retention
    • CNC ground in the USA

Tech Specs

Back To Top
Size 12
Length of Cut 0.0310" (1/32)
Overall Length 2.5000" (2-1/2)
Angle per Side 30
Coating/Finish AlTiN Nano
Included Angle 60
Material Solid Carbide
Maximum Depth of Thread 0.6250" (5/8)
Shank Diameter 0.2500" (1/4)
Cutter Diameter Decimal 0.1600"
Number of Flutes 5
Brand Harvey Tool
Tip Flat 0.0030"
Neck Diameter 0.1110"
