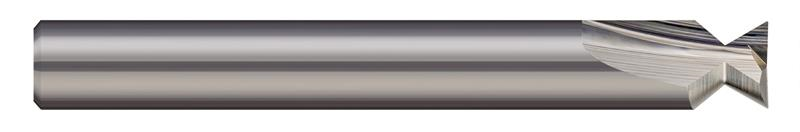

0.4375 in. (7/16) Cutter Diameter x 60 Deg. Included 3 Flute Carbide Pointed Dovetail Cutter

  • Item Code: 995228
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Offered with sharp corner .003", .005", or .010" Corner Radius
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Diameter 0.2220"
Included Angle 60
Number of Flutes 3
Shank Diameter 0.4375" (7/16)
Angle per Side 30
Brand Harvey Tool
Material Solid Carbide
Overall Length 2.7500" (2-3/4)
Coating/Finish None
Fractional Cutting Diameter 7/16"
Decimal Cutting Diameter 0.4375"
Length of Cut 0.1870" (3/16)
