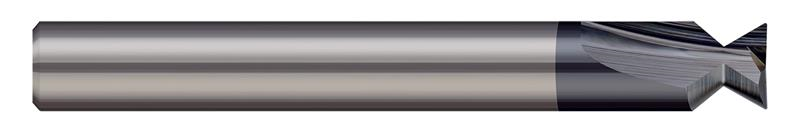

0.7500 in. (3/4) Cutter Diameter x 60 Deg. Included 4 Flute AlTiN Coated Carbide Pointed Dovetail Cutter

  • Item Code: 995248-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Offered with sharp corner .003", .005", or .010" Corner Radius
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Diameter 0.3540" (9 mm)
Fractional Cutting Diameter 3/4"
Decimal Cutting Diameter 0.7500"
Length of Cut 0.3430" (11/32)
Number of Flutes 4
Shank Diameter 0.7500" (3/4)
Angle per Side 30
Brand Harvey Tool
Material Solid Carbide
Coating/Finish AlTiN
Included Angle 60
Overall Length 3.0000" (3)
