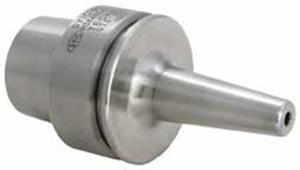

HSK40E X 1/2 Inch Iniside Diameter - 2.36 Inch Length Slimline ShrinkFIT Holder
- Item Code: 99588
- Brand: Techniks
- Unit Size: 1
Description
Slimline holderes have a smaller nose diameter. Perfect for finish passes where small nose diameter is needed. Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.
Tech Specs
Back To Top| Overall Length (in) | 3.15 |
|---|---|
| Overall Length (mm) | 79.9 |
| Body Diameter (in) | 1.06 |
| Gage Length-Face Contact (mm) | 59.9 |
| Overall Diameter (in) | 1.57 |
| Shank Size (in) | 0.5 |
| Gage Length-Face Contact (in) | 2.36 |
| Nose Diameter (in) | 0.71 |
| Brand | Techniks |
| Gage Length (in) | 2.36 |
| Mount | HSK40E |
| Nose Diameter (mm) | 18 |
| Shank Range (in) | Exact Size |
| Gage Length (mm) | 59.9 |
| Style | Single-Ended |
| Collet Series | N/A |
| Material | H13 Steel |
| Type | SlimLINE ShrinkFIT Holder |
| Overall Diameter (mm) | 40 |
| Shank Size (mm) | 12.7 |
| Unit of Tool | Inch |
| Body Diameter (mm) | 26.92 |
| Shank Range (mm) | Exact Size |
