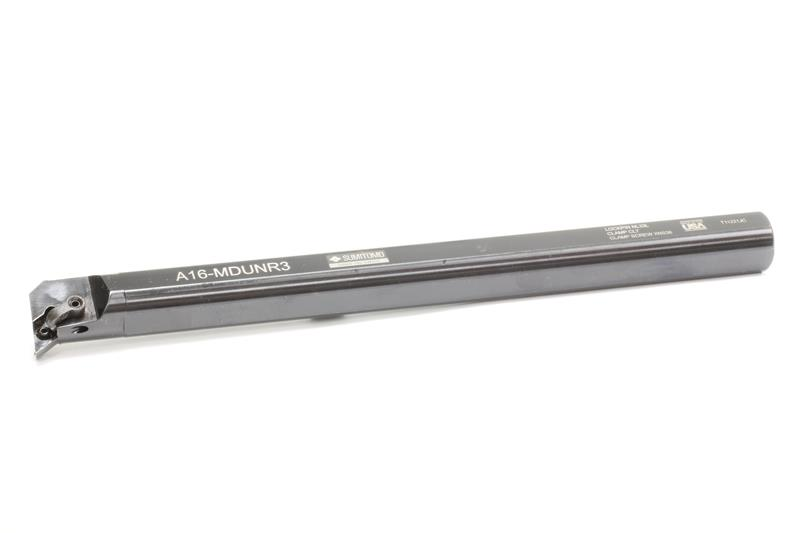

1.3 Inch Minimum Bore Diameter, 1 Inch Shank Diameter, Steel A-MDUN Style 12 Inch OAL Right Hand Holder Through Coolant Indexable Boring Bar

  • Item Code: A16MDUNR3
  • Brand: Sumitomo
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Series A-MDU
Product Name Boring Bar
Type Coolant Hole
Material Steel
Overall Length 12.000 Inch
Shank Diameter 1.000 Inch
Cutting EdgeTo Center Distance 0.750 Inch
Hand of Holder Right
Min Bore Diameter Decimal 1.3000"
Brand Sumitomo
Rake Angle 12 Deg
Coolant Hole Thread Size 1/4-18 NPT
Coolant Through (Yes/No) Yes
