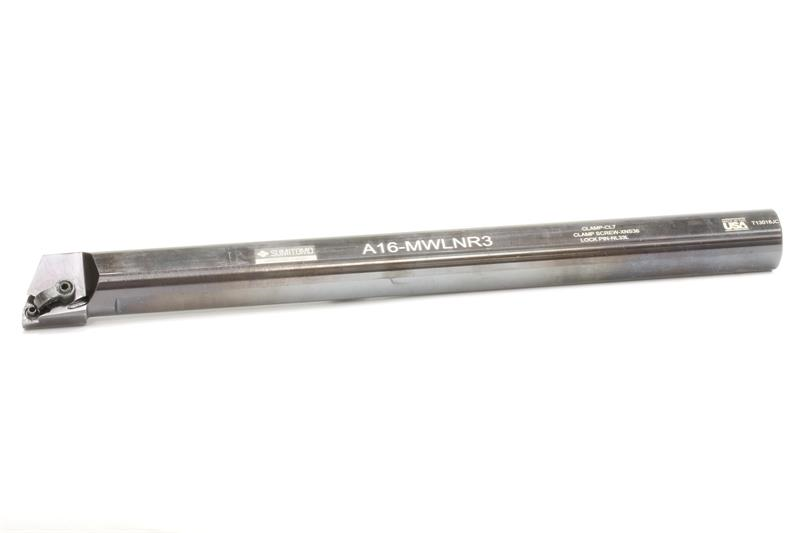

1.2 Inch Minimum Bore Diameter, 1 Inch Shank Diameter, Steel A-MWLN Style 12 Inch OAL Right Hand Holder Through Coolant Indexable Boring Bar

  • Item Code: A16MWLNR3
  • Brand: Sumitomo
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Series A-MWL
Type Coolant Hole
Overall Length 12.000 Inch
Product Name Boring Bar
Rake Angle 14 Deg
Coolant Hole Thread Size 1/4-18 NPT
Cutting EdgeTo Center Distance 0.640 Inch
Hand of Holder Right
Material Steel
Min Bore Diameter Decimal 1.2000"
Shank Diameter 1.000 Inch
Brand Sumitomo
Coolant Through (Yes/No) Yes
