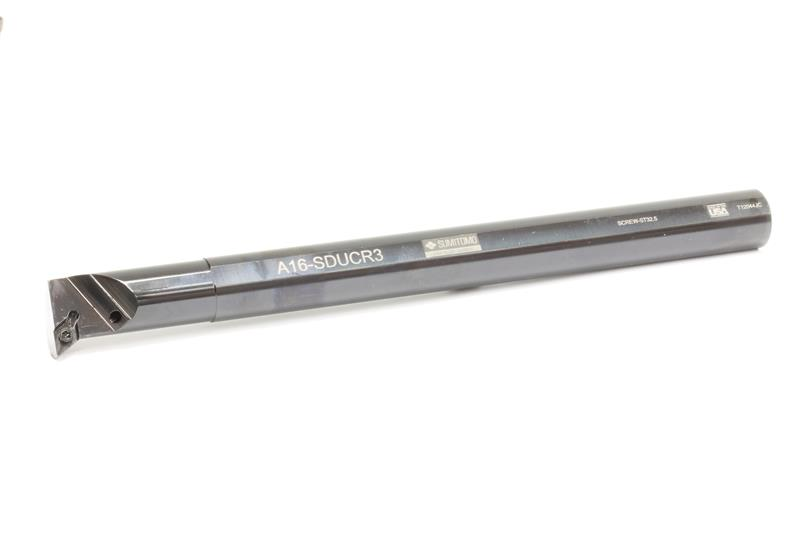

1.3 Inch Minimum Bore Diameter, 1 Inch Shank Diameter, Steel A-SDUC Style 12 Inch OAL Right Hand Holder Through Coolant Indexable Boring Bar

  • Item Code: A16SDUCR3
  • Brand: Sumitomo
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Cutting EdgeTo Center Distance 0.750 Inch
Series A-SDUC
Product Name Boring Bar
Type Coolant Hole
Coolant Hole Thread Size 1/4-18 NPT
Min Bore Diameter Decimal 1.3000"
Brand Sumitomo
Rake Angle -5 Deg
Coolant Through (Yes/No) Yes
Material Steel
Overall Length 12.000 Inch
Shank Diameter 1.000 Inch
Hand of Holder Right
