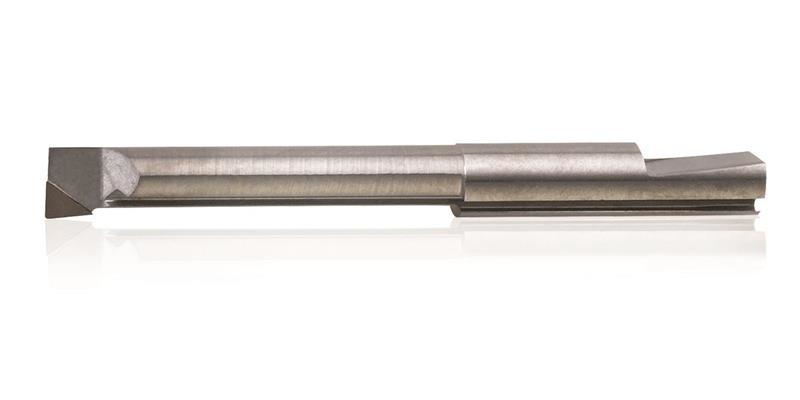

ABD06312R Grade CG5 A/B Boring Insert

  • Item Code: ABD06312R CG5
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Tool Length (Fraction) 0.4120
Tool Length (Inch) 0.4120
Tool Length (Metric) 10.465
Tool Overall Length (Inch) 0.9620
Tool Overall Length (mm) 24.435
Max Bore Depth Metric 7.925 mm
Lead Angle ISO 92.000
Brand WIDIA
Min Bore Diameter Decimal 0.1560"
Min Bore Diameter Metric 3.962 mm
Lead Angle ANSI -2.000
Max Bore Depth Decimal 0.3120"
Units of Tool (Extract) IN - Inch
