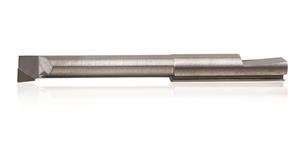

ABD09500R Grade CM1 A/B Boring Insert

  • Item Code: ABD09500R-CM1
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Coating None
Lead Angle ISO 92.000
Tool Overall Length (Inch) 1.1500
Tool Overall Length (mm) 29.210
Max Bore Depth Decimal 0.5000"
Min Bore Diameter Decimal 0.1560"
Min Bore Diameter Metric 3.962 mm
Tool Length (Metric) 15.240
Lead Angle ANSI -2.000
Max Bore Depth Metric 12.70 mm
Tool Length (Inch) 0.6000
Tool Length (Fraction) 0.6000
Units of Tool (Extract) IN - Inch
Brand WIDIA
