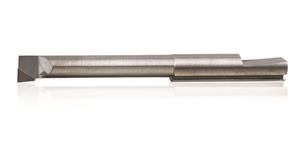

ABD125375R Grade CG5 A/B Boring Insert
- Item Code: ABD125375R-CG5
- Brand: WIDIA
- Unit Size: 1
| Tool Length (Fraction) |
0.4750 |
| Tool Overall Length (Inch) |
1.0250 |
| Max Bore Depth Metric |
9.525 mm |
| Tool Length (Metric) |
12.065 |
| Max Bore Depth Decimal |
0.3750" |
| Lead Angle ISO |
92.000 |
| Brand |
WIDIA |
| Tool Overall Length (mm) |
26.035 |
| Lead Angle ANSI |
-2.000 |
| Min Bore Diameter Decimal |
0.1560" |
| Min Bore Diameter Metric |
3.962 mm |
| Units of Tool (Extract) |
IN - Inch |
| Tool Length (Inch) |
0.4750 |
