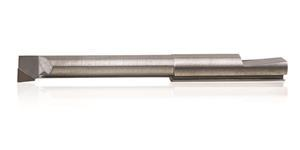

ABD156500R Grade CG5 A/B Boring Insert
- Item Code: ABD156500R-CG5
- Brand: WIDIA
- Unit Size: 1
| Tool Overall Length (Inch) |
1.1500 |
| Max Bore Depth Metric |
12.70 mm |
| Tool Overall Length (mm) |
29.210 |
| Max Bore Depth Decimal |
0.5000" |
| Min Bore Diameter Decimal |
0.1560" |
| Tool Length (Fraction) |
0.6000 |
| Lead Angle ISO |
92.000 |
| Min Bore Diameter Metric |
3.962 mm |
| Tool Length (Metric) |
15.240 |
| Lead Angle ANSI |
-2.000 |
| Tool Length (Inch) |
0.6000 |
| Units of Tool (Extract) |
IN - Inch |
| Brand |
WIDIA |
