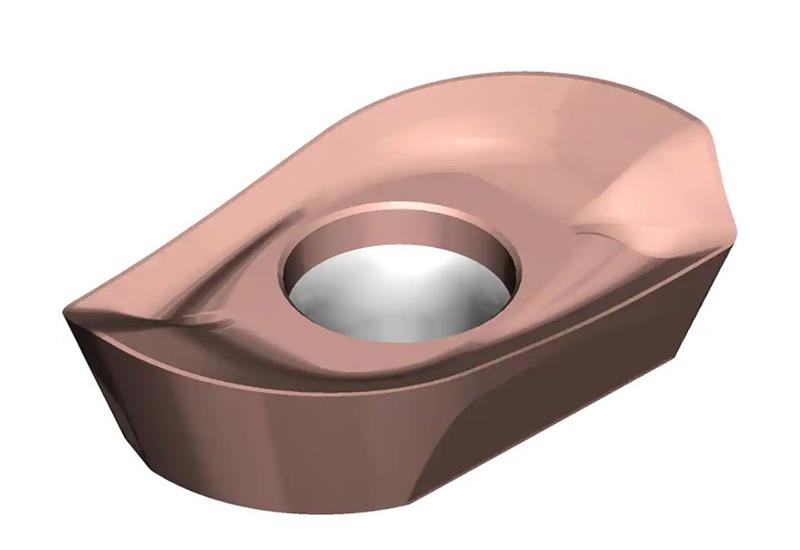

AOET170564PEER-F Grade ACU2500 Carbide Milling Insert
- Item Code: AOET170564PEER-F-ACU2500
- Brand: Sumitomo
- Unit Size: 1
Description
Absotech Finish
5.2mm Thick x 18mm Wide
Tech Specs
Back To Top| Insert Size | 1705 |
|---|---|
| Grade | ACU2500 |
| Coating/Finish | Absotech |
| Width | 18.00mm |
| Corner Radius | 6.40mm |
| Max. Depth of Cut | 14.50mm |
| Cutter Compatibility | WEZ |
| ANSI Number | AOET170564PEER-F-ACU2500 |
| Insert Style | AOET |
| Thickness | 5.20mm |
| Product Type | Milling |
| Shape | Rectangle |
| Material | Solid Carbide |
| Brand | Sumitomo |
