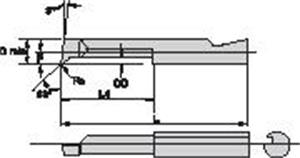

APD06187R Grade CG5 A/B Profiling Insert
- Item Code: APD06187R CG5
- Brand: WIDIA
- Unit Size: 1
| Corner Radius (Inch) |
0.0070 |
| Cutting Depth (Inch) |
0.0170 |
| Cutting Depth (Metric) |
0.432 |
| Tool Length (Fraction) |
0.2870 |
| Tool Length (Inch) |
0.2870 |
| Tool Length (Metric) |
7.290 |
| Tool Overall Length (Inch) |
0.8370 |
| Tool Overall Length (mm) |
21.260 |
| Max Bore Depth Metric |
4.75 mm |
| Min Bore Diameter Decimal |
0.1560" |
| Min Bore Diameter Metric |
3.962 mm |
| Toolholder Shape |
S - Straight |
| Brand |
WIDIA |
| Corner Radius (Fractional) |
0.0070 |
| Lead Angle ANSI |
-3.000 |
| Lead Angle ISO |
93.000 |
| Max Bore Depth Decimal |
0.1870" |
| Body Material Group |
C |
| Corner Radius (Metric) |
0.178 |
| Units of Tool (Extract) |
IN - Inch |
