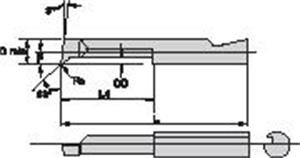

APD125375R Grade CG5 A/B Profiling Insert
- Item Code: APD125375R CG5
- Brand: WIDIA
- Unit Size: 1
| Cutting Depth (Inch) |
0.0400 |
| Cutting Depth (Metric) |
1.016 |
| Tool Length (Inch) |
0.4750 |
| Tool Length (Metric) |
12.065 |
| Tool Overall Length (mm) |
26.035 |
| Corner Radius (Fractional) |
0.0070 |
| Corner Radius (Metric) |
0.178 |
| Units of Tool (Extract) |
IN - Inch |
| Corner Radius (Inch) |
0.0070 |
| Lead Angle ISO |
93.000 |
| Max Bore Depth Decimal |
0.3750" |
| Min Bore Diameter Decimal |
0.1560" |
| Body Material Group |
C |
| Brand |
WIDIA |
| Max Bore Depth Metric |
9.525 mm |
| Tool Length (Fraction) |
0.4750 |
| Tool Overall Length (Inch) |
1.0250 |
| Min Bore Diameter Metric |
3.962 mm |
| Lead Angle ANSI |
-3.000 |
| Toolholder Shape |
S - Straight |
