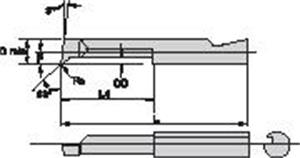

APD156500R Grade CM1 A/B Profiling Insert
- Item Code: APD156500R CM1
- Brand: WIDIA
- Unit Size: 1
| Body Material Group |
C |
| Cutting Depth (Inch) |
0.0500 |
| Cutting Depth (Metric) |
1.270 |
| Tool Length (Fraction) |
0.6000 |
| Max Bore Depth Decimal |
0.5000" |
| Max Bore Depth Metric |
12.70 mm |
| Min Bore Diameter Metric |
3.962 mm |
| Tool Length (Inch) |
0.6000 |
| Tool Overall Length (Inch) |
1.1500 |
| Tool Overall Length (mm) |
29.210 |
| Corner Radius (Fractional) |
0.0070 |
| Corner Radius (Inch) |
0.0070 |
| Lead Angle ISO |
93.000 |
| Tool Length (Metric) |
15.240 |
| Toolholder Shape |
S - Straight |
| Corner Radius (Metric) |
0.178 |
| Min Bore Diameter Decimal |
0.1560" |
| Units of Tool (Extract) |
IN - Inch |
| Brand |
WIDIA |
| Lead Angle ANSI |
-3.000 |
