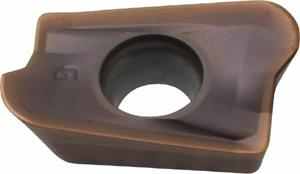

APET103504 ACZ350 Grade Carbide Milling Insert

  • Item Code: APET103504PDER ACZ350
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type PDER
Cutting Width 0.2500 Inch
Face Width 0.0315 Inch
Insert Size 103504
Insert Style APET
Length 0.3940 Inch
Type Multi-Purpose
Brand Sumitomo
Grade ACZ350
Product Type Milling
Material Solid Carbide
Relief Angle 30 Degree
Coating/Finish Coated
Corner Radius 0.0160 Inch
Thickness 0.1380 Inch
