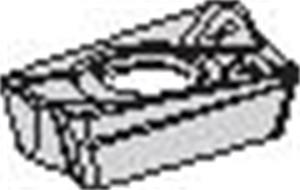

APPT160408PDERMM Grade TN6540 Carbide TiAlN Coated APPT Milling Insert
- Item Code: APPT160408PDERMM-TN6540
- Brand: WIDIA
- Unit Size: 1
Description
Application Material: Steels and Nodular Cast Iron
Coated carbide
PVD - TiAlN Multilayer
Medium and heavy machining
For steels and nodular cast iron
Features
Back To Top- Medium and heavy machining
- For steels and nodular cast iron
Tech Specs
Back To Top| Insert Thickness (Inch) | 0.2070 |
|---|---|
| Insert Thickness (Metric) | 5.260 |
| Insert Width (Inch) | 0.3710 |
| Chipbreaker Mfgr Designation | MM |
| Corner Radius (Fractional) | 1/32 |
| Included Angle | 85.000 |
| Insert Number of Cutting Edges | 2 |
| Insert Width (Metric) | 9.430 |
| Corner Radius (MM) | 0.790 |
| Insert Rake Angle | 20.000 |
| Material | Solid Carbide |
| Product Type | Milling |
| Units of Tool (Extract) | B - Both Metric & Inch |
| Coating/Finish | ALOX-SN |
| Insert Thickness (Fraction) | .207 |
| Corner Radius (in) | 0.031000 |
| Wiper Radius (Inch) | 3.500000 |
| Brand | WIDIA |
| Coating System | PVD |
| Insert Shape-EPP | 05 Rhomboid (A-B-K) |
| Corner Style | Corner Radius |
| Wiper Radius (Metric) | 88.900 |
