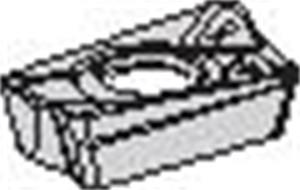

APPT160408PDSRMM Grade TN6525 Carbide TiAlN Coated APPT Milling Insert
- Item Code: APPT160408PDSRMM TN6525
- Brand: WIDIA
- Unit Size: 1
Description
Application Material: Steels and high strength Nodular Cast Iron
Coated Carbide
PVD - TiAlN Multilayer
Light and medium machining
For steels and high strength nodular cast iron
Features
Back To Top- First choice for general machining in steel and cast iron
- Best option for general-purpose use
Tech Specs
Back To Top| Insert Rake Angle | 20.000 |
|---|---|
| Insert Thickness (Fraction) | .207 |
| Insert Width (Metric) | 9.430 |
| Wiper Radius (Inch) | 3.500000 |
| Chipbreaker Mfgr Designation | MM |
| Insert Shape-EPP | 05 Rhomboid (A-B-K) |
| Corner Radius (Fractional) | 1/32 |
| Corner Radius (MM) | 0.790 |
| Wiper Radius (Metric) | 88.900 |
| Corner Style | Corner Radius |
| Included Angle | 85.000 |
| Material | Solid Carbide |
| Insert Thickness (Inch) | 0.2070 |
| Corner Radius (in) | 0.031000 |
| Insert Thickness (Metric) | 5.260 |
| Product Type | Milling |
| Brand | WIDIA |
| Coating/Finish | ALOX-SN |
| Insert Width (Inch) | 0.3710 |
| Units of Tool (Extract) | B - Both Metric & Inch |
| Coating System | PVD |
| Insert Number of Cutting Edges | 2 |
