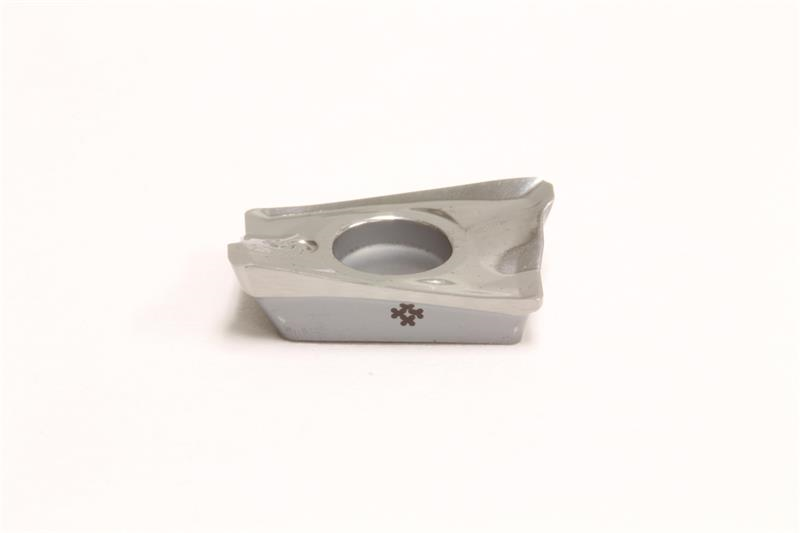

AXET123502 H1 Grade Carbide Milling Insert

  • Item Code: AXET123502PEFRS H1
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 123502
Insert Series WEX2000
Face Width 0.0610 Inch
Length 0.4720 Inch
Chipbreaker Type PEFRS
Corner Radius 0.0160 Inch
Grade H1
Insert Style AXET
Thickness 0.1380 Inch
Included Angle 85
Material Solid Carbide
Brand Sumitomo
Relief Angle 11 Degree
Coating/Finish None
Cutting Width 0.2600 Inch
Product Name Milling Insert
Applicable Materials Aluminium Alloy
