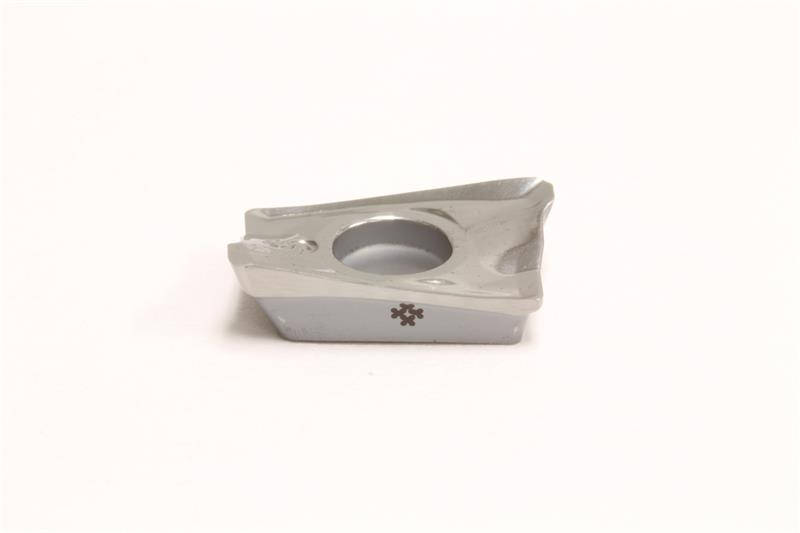

AXET123504 H1 Grade Carbide Milling Insert

  • Item Code: AXET123504PEFRS-H1
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Series WEX2000
Length 0.4720 Inch
Brand Sumitomo
Chipbreaker Type PEFRS
Grade H1
Insert Style AXET
Material Solid Carbide
Thickness 0.1380 Inch
Applicable Materials Aluminium Alloy
Relief Angle 11 Degree
Coating/Finish None
Corner Radius 0.0160 Inch
Cutting Width 0.2600 Inch
Included Angle 85
Face Width 0.0610 Inch
Insert Size 123504
Product Name Milling Insert
