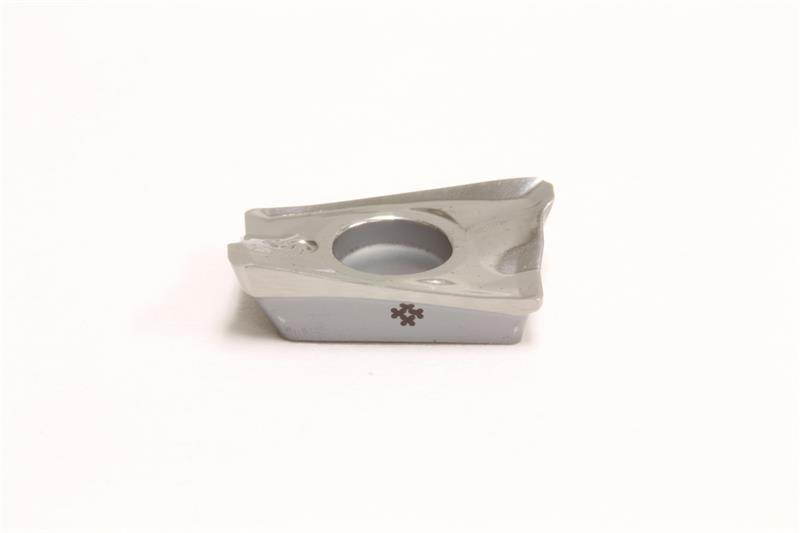

AXET170502 H1 Grade Carbide Milling Insert

  • Item Code: AXET170502PEFRS H1
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0080 Inch
Grade H1
Cutting Width 0.4020 Inch
Included Angle 85
Chipbreaker Type PEFRS
Insert Style AXET
Insert Series WEX3000
Applicable Materials Aluminium Alloy
Relief Angle 11 Degree
Insert Size 170502
Thickness 0.2190 Inch
Brand Sumitomo
Coating/Finish None
Length 0.6890 Inch
Product Name Milling Insert
Face Width 0.1180 Inch
Material Solid Carbide
