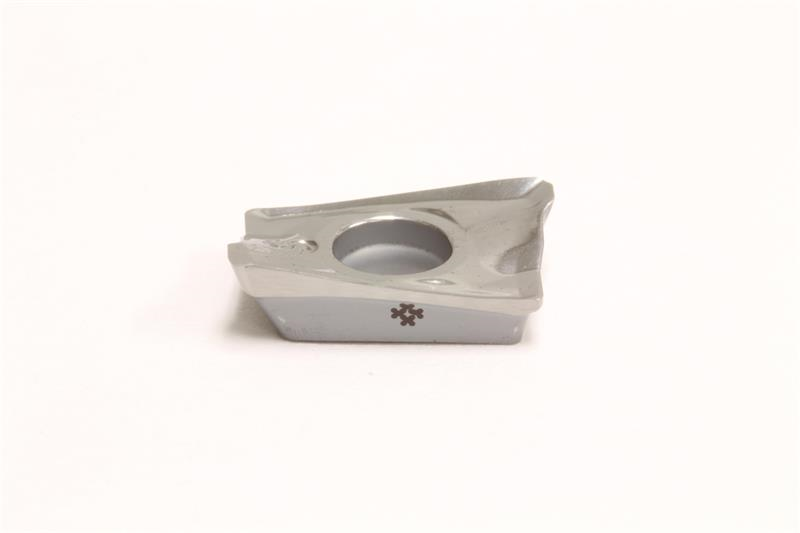

AXET170504 H1 Grade Carbide Milling Insert

  • Item Code: AXET170504PEFRS H1
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type PEFRS
Included Angle 85
Insert Style AXET
Material Solid Carbide
Corner Radius 0.0160 Inch
Grade H1
Product Name Milling Insert
Coating/Finish None
Insert Size 170504
Length 0.6890 Inch
Thickness 0.2190 Inch
Brand Sumitomo
Relief Angle 11 Degree
Face Width 0.1180 Inch
Applicable Materials Aluminium Alloy
Cutting Width 0.4020 Inch
Insert Series WEX3000
