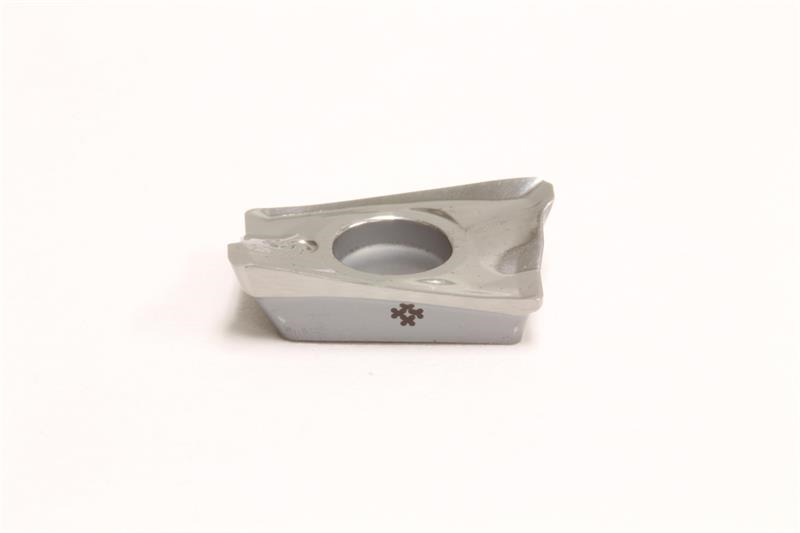

AXET170508 H1 Grade Carbide Milling Insert

  • Item Code: AXET170508PEFRS H1
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish None
Face Width 0.1180 Inch
Length 0.6890 Inch
Thickness 0.2190 Inch
Applicable Materials Aluminium Alloy
Brand Sumitomo
Cutting Width 0.4020 Inch
Insert Size 170508
Relief Angle 11 Degree
Insert Series WEX3000
Insert Style AXET
Material Solid Carbide
Grade H1
Chipbreaker Type PEFRS
Included Angle 85
Corner Radius 0.0310 Inch
Product Name Milling Insert
