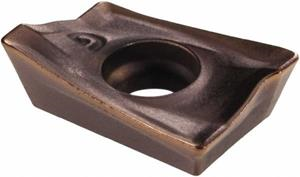

AXMT123504 E ACM200 Grade Carbide Milling Insert

  • Item Code: AXMT123504PEERE ACM200
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Stainless Steel
Chipbreaker Type PEERE
Grade ACM200
Face Width 0.0610 Inch
Length 0.4720 Inch
Cutting Width 0.2600 Inch
Included Angle 85
Insert Size 123504
Max Depth of Cut 0.3940 Inch
Material Solid Carbide
Product Name Milling Insert
Insert Style AXMT
Corner Radius 0.0160 Inch
Insert Series WEX2000
Thickness 0.1380 Inch
Brand Sumitomo
Relief Angle 11 Degree
