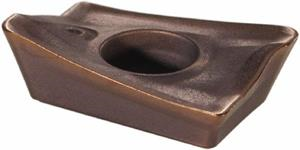

AXMT123508 E ACM200 Grade Carbide Milling Insert

  • Item Code: AXMT123508PEERE ACM200
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Thickness 0.1380 Inch
Length 0.4720 Inch
Applicable Materials Stainless Steel
Brand Sumitomo
Grade ACM200
Insert Style AXMT
Material Solid Carbide
Max Depth of Cut 0.3940 Inch
Chipbreaker Type PEERE
Cutting Width 0.2600 Inch
Relief Angle 11 Degree
Corner Radius 0.0160 Inch
Insert Series WEX2000
Insert Size 123508
Face Width 0.0610 Inch
Included Angle 85
Product Name Milling Insert
