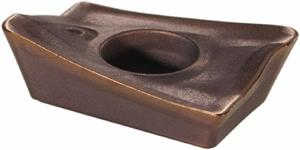

AXMT123508 EH ACM300 Grade Carbide Milling Insert

  • Item Code: AXMT123508PEEREH ACM300
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type PEEREH
Brand Sumitomo
Face Width 0.0610 Inch
Insert Size 123508
Length 0.4720 Inch
Applicable Materials Heat Resistant Alloy
Product Name Milling Insert
Corner Radius 0.0160 Inch
Relief Angle 11 Degree
Cutting Width 0.2600 Inch
Included Angle 85
Material Solid Carbide
Max Depth of Cut 0.3940 Inch
Grade ACM300
Insert Series WEX2000
Thickness 0.1380 Inch
Insert Style AXMT
