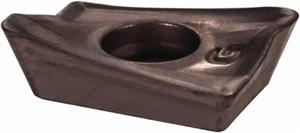

AXMT123508 ACP300 Grade Carbide Milling Insert

  • Item Code: AXMT123508PEERG ACP300
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style AXMT
Cutting Width 0.2600 Inch
Applicable Materials Steel
Relief Angle 11 Degree
Grade ACP300
Face Width 0.0610 Inch
Included Angle 85
Material Solid Carbide
Corner Radius 0.0160 Inch
Insert Series WEX2000
Thickness 0.1380 Inch
Brand Sumitomo
Insert Size 123508
Length 0.4720 Inch
Max Depth of Cut 0.3940 Inch
Chipbreaker Type PEERG
Product Name Milling Insert
